Top rafter bracket XL

£  2.55

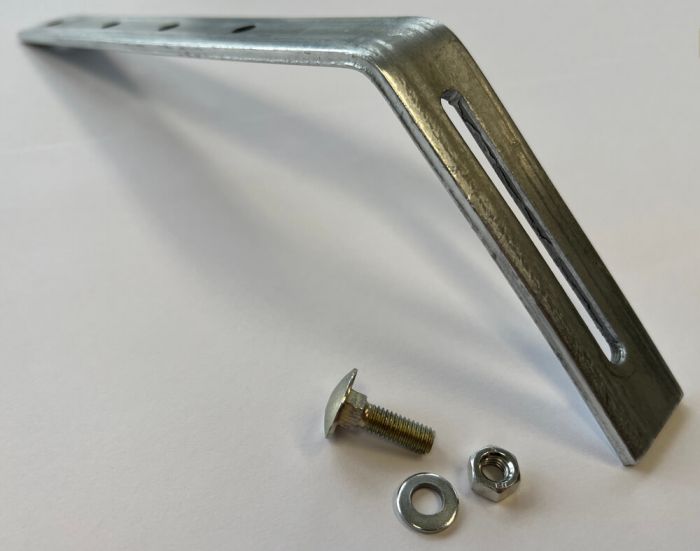

Does your building not have a fascia board, and is your roof protruding too far for our normal top rafter brackets? Then perhaps this extra-large galvanised top rafter bracket is the solution. They are sold a piece, including M6x20 carriage bolt, nut and washer.

These top rafter brackets are 2,2 mm thick and therefore extra strong. As a standard, they are set at an angle of approximately 30°. Bending them to a desired gradient is very easy.

This top rafter bracket is suitable for our zinc fascia brackets type 110 and 125, and for our PVC Extra100 fascia brackets. For the PVC gutter types GD16 and BG70, however, you need to use a M5x16 round cylinder screw and nut (these are not included).

Specifications:
Delivery per item
Material Galvanised
Thickness approx 2,2 mm
Length of tail approx 195 mm
Angle approx 30°
Size carriage bolt M6x20
